Trailer-mounted tanks – CIT range

Environment
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120
CIT 120

Standard Equipment

The CIT120 trailer tank is the ideal partner for your hydrocleaning truck. Mounted on a road trailer (to be coupled behind a road truck), it offers an additional transport capacity of 12,000 litres. Also ADR-approved, it will enable you to increase your service rate for industrial customers.

Gourdon provides you with equipment that allows you to group your services together thanks to double the transport capacity, thereby reducing the cost per tonne and winning contracts with private customers and local authorities.

Standard equipment for the CIT120:

  • CE certification
  • Hydraulic distributor
  • BNA Ø68 mm tow ring
  • Hydraulic outrigger with hand pump
  • Large tandem axles
  • Brakes: 300×160 mm
  • Wabco Electronic Braking System (EBS)
  • Wheels: 215/75R17.5 twin tyres
  • Ball overflow valve, transparent side level gauge
  • 2 DIN100 valves with symmetrical connections on rear base
  • Ø800 mm manhole for tank inspection
  • Side vent valve
  • Tank articulated on chassis
  • Tipping cylinder operated by 24V electric pump
  • Aluminium side pipe holders
  • Choice of 2 RAL colours (1 chassis + 1 tank)
  • Tank marked with your logo
  • Tool box

Available Options

  • DIN 50 ring
  • Fully opening base with double-acting cylinders
  • Manual opening bottom locking
  • Hydraulic opening bottom locking
  • Full galvanisation of the tank
  • Tankguard epoxy treatment
  • 11 KW autonomous hydraulic unit
  • Stainless steel rear unloading flap
  • 2 rear working lights
  • Work triangle (manual or electric lift)
  • Rear rotating beacon
  • Suction hose with symmetrical connectors – Length 4 m
  • Suction hose with symmetrical connections – Length 5 m

Autonomous centrifugal suction unit:

    • 14 kW combustion engine
    • Centrifugal pump for dirty water

Autonomous vacuum suction unit:

    • 12 kW combustion engine
    • Vane suction pump
    • Cyclone purifier (pump protection)

Autonomous hydrocleaning unit:

      • Clean water tank
      • High-pressure piston pump
      • High-pressure hose reel and lance
      • 50 kW combustion engine
      • Vane suction pump
      • Cyclone purifier (pump protection)

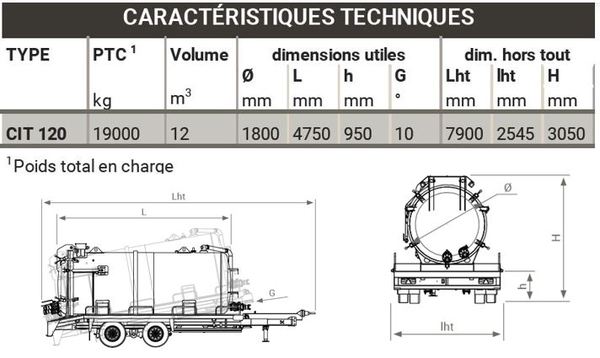

Technical Specifications

Technical specifications
