Fixed tray with cut-off edge – PEF range
Standard Equipment
Hitch
- Height-adjustable hitch with BNA ring
- Hydraulic jack with hand pump
- Mechanically operated parking brake
Running gear
- CE certification
- Generously sized tandem axles
- Parabolic leaf spring suspensions
- Pneumatic braking with EBS
- 8 wheels in twin configuration
Bodywork/lighting
- Robust mechanically welded frame
- Composite steel floor with anti-slip strips and exotic wood
- Fixed plate
- Rear cut-out for easier loading
- 24V regulatory lighting, LED lights
- Electrical harness for 15-pin socket protected in steel tube
Loading
- Hydraulic lifting and spreading of ramps by 24V electric pump
- Power supply to the electric pump connected directly to the towing vehicle
- Long ramps in 2 parts, steel + wood
- Rear stabilising outriggers with hydraulic lowering
- 14 lashing points for chains
- 12 lashing points for straps
Standard Equipment
Hitch
- Height-adjustable hitch with BNA ring
- Hydraulic jack with hand pump
- Mechanically operated parking brake
Running gear
- CE certification
- Generously sized tandem axles
- Parabolic leaf spring suspensions
- Pneumatic braking with EBS
- 8 wheels in twin configuration
Bodywork/lighting
- Robust mechanically welded frame
- Composite steel floor with anti-slip strips and exotic wood
- Fixed plate
- Rear cut-out for easier loading
- 24V regulatory lighting, LED lights
- Electrical harness for 15-pin socket protected in steel tube
Loading
- Hydraulic lifting and spreading of ramps by 24V electric pump
- Power supply to the electric pump connected directly to the towing vehicle
- Long ramps in 2 parts, steel + wood
- Rear stabilising outriggers with hydraulic lowering
- 14 lashing points for chains
- 12 lashing points for straps

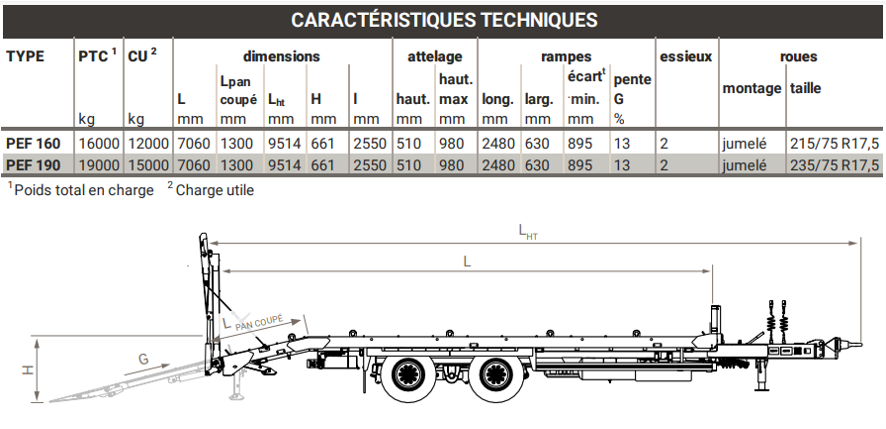

Technical Specifications
