Fixed tray with cut-off edge – PAF range
Standard Equipment
Hitch
- Drawbar with springs adjustable to 3 positions
- Hydraulic jack with hand pump
Running gear
- Generously sized tandem axles
- Pneumatic braking - 40 km/h certification and parking brake
Bodywork/lighting
- Robust mechanically welded frame
- Reinforcements under the tray
- Composite steel floor with anti-slip strips and exotic wood
- Fixed plate
- Rear cut-out for easier loading
- Underrun bar Standard 2020
- Orange side lights and clearance lights Standard 2020
- 24V regulatory lighting, LED lights with integrated rotating beacon
- Electrical cable for 15-pin socket protected in steel tube
Loading
- Hydraulic lifting and spreading of the booms by 24V electric pump
- Power supply to the electric pump connected directly to the towing vehicle
- Long ramps in 2 parts, steel + wood
- Rear stabilising outriggers with hydraulic lowering
- 14 lashing points for chains
- 12 lashing points for straps

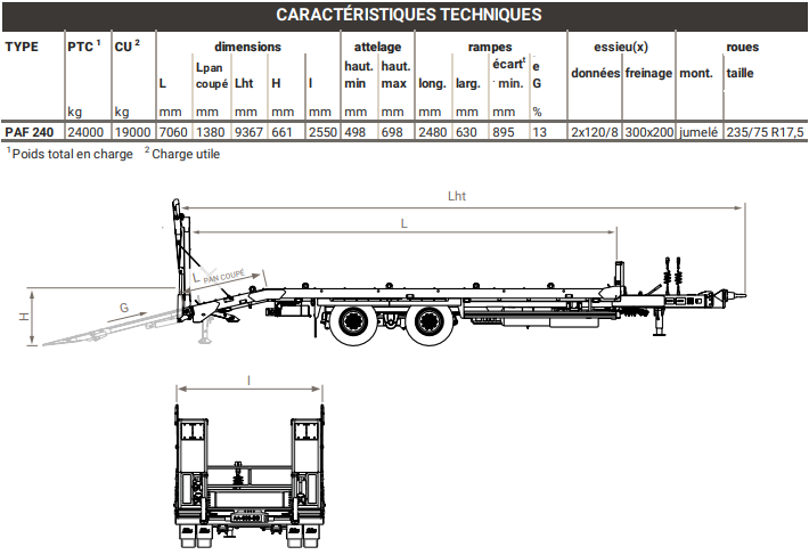

Technical Specifications
